E3NC

Senzor laser de mare precizie, cu amplificator separat

Senzorii laser cu amplificator separat dispun de o gamă completă de capete de detecție cu spot variabil şi de capete de detecție avansate CMOS pentru poziţionare de mare precizie şi aplicaţii solicitante.

Stabilitate ridicată a detecţiei, independentă de culoare sau de structura suprafeţei
Accesorii ataşate la lentilă pentru aplicaţii cu raze liniare
Instalare simplă datorită funcţiilor de focalizare reglabilă şi de reglaj inteligent
Capetele senzorilor asigură o distanţă de detecţie de până la 1,2 m, acoperind o gamă variată de aplicaţii
Conectare la reţea de comunicație EtherCat de mare viteză

Comparaţi toate modelele Librărie CAD

Specificaţii şi informaţii pentru comenzi

Ordering information

Sensor heads E3NC-L Sensor Series

Sensor type	Sensing distance	Remarks	Order code
Diffuse-reflective	1,200 mm	Variable spot (diffuse reflective)	E3NC-LH02 2M
70±15 mm	Fixed spot (limited reflective)	E3NC-LH01 2M
Coaxial retro-reflective with M.S.R.	8 m1	Fixed spot	E3NC-LH03 2M

Sensor type

Sensing distance

Remarks

Order code

Diffuse-reflective

1,200 mm

Variable spot (diffuse reflective)

E3NC-LH02 2M

70±15 mm

Fixed spot (limited reflective)

E3NC-LH01 2M

Coaxial retro-reflective

with M.S.R.

8 m1

Fixed spot

E3NC-LH03 2M

Sensor heads E3NC-S CMOS Laser Sensor Series

Sensor type	Sensing distance	Laser class	Order code
Diffuse-reflective (distance-settable)	35 to 100 mm	1	E3NC-SH100 2M
35 to 250 mm	1	E3NC-SH250 2M
35 to 250 mm	2	E3NC-SH250H 2M

Sensor type

Sensing distance

Laser class

Order code

Diffuse-reflective
(distance-settable)

35 to 100 mm

E3NC-SH100 2M

35 to 250 mm

E3NC-SH250 2M

35 to 250 mm

E3NC-SH250H 2M

Amplifier units E3NC-L Sensor Series

Item	Order code
	pre-wired		with connector2		M8 connector
	NPN output	PNP output	NPN output	PNP output	NPN output	PNP output
2 outputs + 1 input models	E3NC-LA21 2M	E3NC-LA51 2M	-		-
1 output + 1 input models	-		E3NC-LA7	E3NC-LA9	E3NC-LA24	E3NC-LA54
Networking model3	E3NC-LA0

Amplifier units E3NC-S CMOS Laser Sensor Series

Item	Order code
	pre-wired		with connector4		M8 connector
	NPN output	PNP output	NPN output	PNP output	NPN output	PNP output
2 outputs + 1 input models	E3NC-SA21 2M	E3NC-SA51 2M	-		-
1 output + 1 input models	-		E3NC-SA7	E3NC-SA9	E3NC-SA24	E3NC-SA54
Networking model5	E3NC-SA0

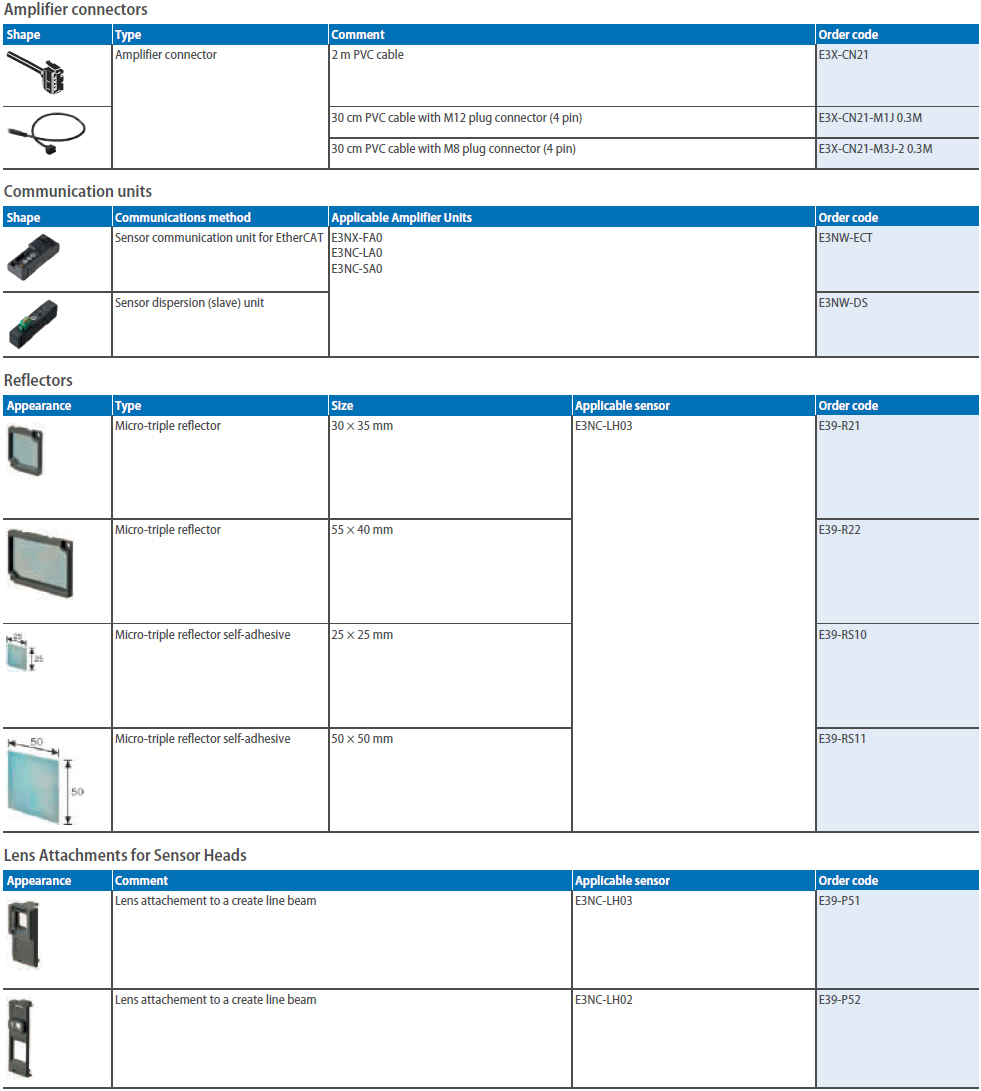

Amplifier connectors

Type	Comment	Order code
Amplifier connector	2 m PVC cable	E3X-CN21
	30 cm PVC cable with M12 plug connector (4 pin)	E3X-CN21-M1J 0.3M
	30 cm PVC cable with M8 plug connector (4 pin)	E3X-CN21-M3J-2 0.3M

Communication units

Shape	Communications method	Applicable Amplifier Units	Order code
	Sensor communication unit for EtherCAT	E3NX-FA0 E3NC-LA0 E3NC-SA0	E3NW-ECT
	Sensor dispersion (slave) unit	E3NW-DS

Shape

Communications method

Applicable Amplifier Units

Order code

Sensor communication unit for EtherCAT

E3NX-FA0

E3NC-LA0

E3NC-SA0

E3NW-ECT

Sensor dispersion (slave) unit

E3NW-DS

Reflectors

Type	Size	Applicable sensor	Order code
Micro-triple reflector	30 × 35 mm	E3NC-LH03	E39-R21
Micro-triple reflector	55 × 40 mm		E39-R22
Micro-triple reflector self-adhesive	25 × 25 mm		E39-RS10
Micro-triple reflector self-adhesive	50 × 50 mm		E39-RS11

Lens Attachments for Sensor Heads

Appearance	Comment	Applicable sensor	Order code
	Lens attachement to a create line beam	E3NC-LH03	E39-P51
	Lens attachement to a create line beam	E3NC-LH02	E39-P52

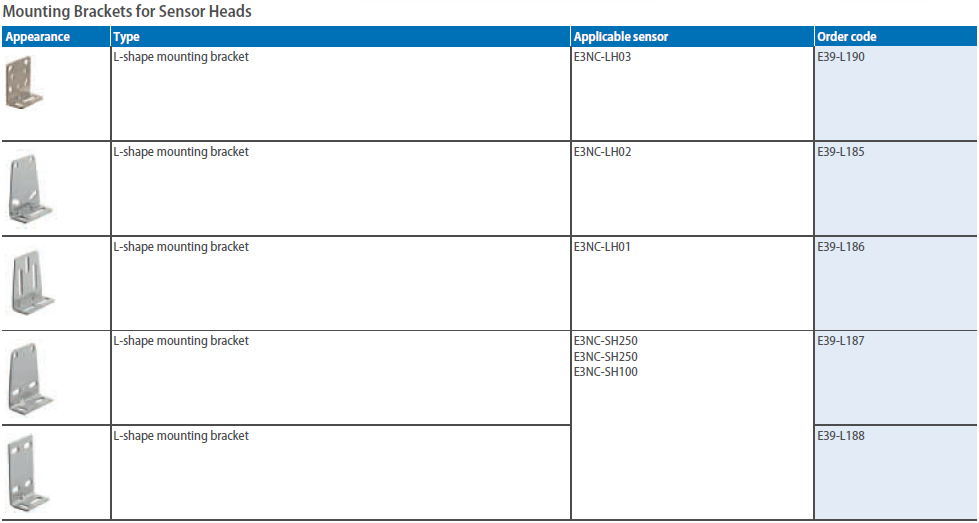

Mounting Brackets for Sensor Heads

Type	Applicable sensor	Order code
L-shape mounting bracket	E3NC-LH03	E39-L190
L-shape mounting bracket	E3NC-LH02	E39-L185
L-shape mounting bracket	E3NC-LH01	E39-L186
L-shape mounting bracket	E3NC-SH250 E3NC-SH250 E3NC-SH100	E39-L187
L-shape mounting bracket	E3NC-SH250 E3NC-SH250 E3NC-SH100	E39-L188

Specifications

Sensor heads E3NC-L Sensor Series

Item	Coaxial Retro-reflective (M.S.R.)	Diffuse-reflective
Item	E3NC-LH03	E3NC-LH02	E3NC-LH01
Light source (emission wave length)	Red laser diode (660 nm), 315 μW max. (JIS Class 1, IEC/EN Class 1, and FDA Class 1)
Sensing distance	Giga-power mode (GIGA): 8 m Standard mode (Stnd): 6 m High-speed mode (HS): 3.5 m Super-high-speed mode (SHS): 2 m	Giga-power mode (GIGA): 1,200 mm Standard mode (Stnd): 750 mm High-speed mode (HS): 250 mm Super-high-speed mode (SHS): 200 mm	70±15 mm
Beam size (typical)	2 mm dia. (at 1 m)	0.8 mm max. (at distances up to 300 mm)	0.1 mm (at 70 mm)
Degree of protection	IP67	IP65

Amplifier units E3NC-L Sensor Series

Item			2 output/1 input models	1 output/1 input models	Networking models
		NPN output	E3NC-LA21	E3NC-LA7/E3NC-LA24	E3NC-LA0
		PNP output	E3NC-LA51	E3NC-LA9/E3NC-LA54	E3NC-LA0
Outputs			2 outputs	1 output	-*
Inputs			1 input		-*
Supply voltage			10 to 30 VDC±10%, ripple (p-p) 10% max.
Response time	Super-high-speed mode		80 µs
	High-speed mode		250 µs
	Standard mode		1 ms
	Giga-power mode		16 ms
Functions	Smart tuning		2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning, power tuning, or percentage tuning (−99% to 99%)
	Timer function		Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay timer: 1 to 9,999 ms
	Eco mode		Select from OFF (digital displays lit) or ECO (digital displays not lit)
	Bank switching		Select from banks 1 to 4
	Dynamic Power Control (DPC)		Provided (automatically controls light intensity and compensates incident level changes)
Ambient temperature range	Operating		−10 to 55°C
Ambient temperature range	Storage		−25 to 70°C (with no icing or condensation)
Digital display			7-segment displays (sub digital display: green, main digital display: white) Display direction: switchable between normal and reversed
Degree of protection			IP50 (IEC 60529)

* Two sensor outputs are allocated in the programmable logic controller PLC I/O table. PLC operation via Communications Unit enables reading detected values and changing settings.

Sensor heads E3NC-SH CMOS Laser Sensor series

Item		Diffuse-reflective (distance-settable)
Item	E3NC-SH250H	E3NC-SH250	E3NC-SH100
Light source (emission wave length)	Red laser diode (660 nm), 1 mW (average output: 220 μW), (JIS Class 2, IEC/EN Class 2, and FDA Class 2)	Red laser diode (660 nm), 100 μW max. (JIS Class 1, IEC/EN Class 1, and FDA Class 1)
Measurement range	35 to 250 mm (display value: 350 to 2,500)		35 to 100 mm (display value: 350 to 1,000)
Spot diameter	1 mm (at 250 mm)		0.5 mm (at 100 mm)
Degree of protection	IEC60529 IP67

Amplifier units E3NC-SH CMOS Laser Sensor series

Item			2 output/1 input models	1 output/1 input models	Networking models
		NPN output	E3NC-SA21	E3NC-SA7/E3NC-SA24	E3NC-SA0
		PNP output	E3NC-SA51	E3NC-SA9/E3NC-SA54	E3NC-SA0
Outputs			2 outputs	1 output	-*
Inputs			1 input		-*
Supply voltage			10 to 30 VDC±10%, ripple (p-p) 10% max.
Response time	Super-high-speed mode		1.5 ms
	High-speed mode		5 ms
	Standard mode		10 ms
	Giga-power mode		50 ms
Functions	Smart tuning		2-point tuning, full auto tuning, 1-point tuning, tuning without workpiece, 2-point area tuning, 1-point area tuning, or area tuning without workpiece
	Timer function		Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay timer: 1 to 9,999 ms
	Bank switching		Select from banks 1 to 4
Ambient temperature range	Operating		−10 to 55°C
Ambient temperature range	Storage		−25 to 70°C (with no icing or condensation)
Digital display			7-segment displays (sub digital display: green, main digital display: white) Display direction: switchable between normal and reversed.
Degree of protection			IP50 (IEC 60529)

* Two sensor outputs are allocated in the programmable logic controller PLC I/O table. PLC operation via Communications Unit enables reading detected values and changing settings.

1. A Reflector is not included. Purchase a Reflector separately.

2. Order connector (E3X-CN21_) separately from accessories

3. For network connection please order networking unit E3NW

4. Order connector (E3X-CN21_) separately from accessories

5. For network connection please order networking unit E3NW

* Two sensor outputs are allocated in the programmable logic controller PLC I/O table. PLC operation via Communications Unit enables reading detected values and changing settings.

1. A Reflector is not included. Purchase a Reflector separately.

2. Order connector (E3X-CN21_) separately from accessories

3. For network connection please order networking unit E3NW

4. Order connector (E3X-CN21_) separately from accessories

5. For network connection please order networking unit E3NW
